Wall-mounted electrically height-adjustable monitor stand for interactive displays

Product description

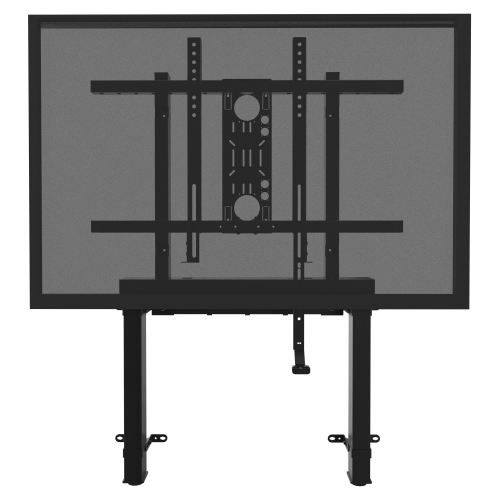

Model "DCS" - Electrically height-adjustable stand for interactive displays, for floor/wall mounting.

The electric lift system is designed for displays with a size of up to 86'' and a load capacity of max. 120 kg. The height is infinitely adjustable using a hand switch. The two double telescopic pylon columns, which have a lifting range of 650 mm, make the system extremely versatile.

The integrated anti-collision feature increases safety to prevent injury to the user or damage to the system. If contact with an obstacle occurs, the system automatically reverses in the opposite direction.

The system is designed for floor-wall mounting so that it can also be installed on lightweight walls. The wall mounting brackets are included in the scope of delivery.

The system comes with a mounting plate as standard to accommodate a mini PC (VESA 75 and VESA 100) and a power strip. The option of connecting additional accessories such as a camera and keyboard shelf, as well as whiteboard side panels, help to increase user-friendliness and improve the range of applications in the training area.

The product is supplied disassembled in a cardboard box.

Features

• VESA mount up to max. VESA 800 x 600
• Travel speed: 70mm/sec.
• Stroke: 65 cm
• Load capacity: 120 kg
• incl. anti-collision protection
• Center of display approx. 1,000 - 1,650 mm
• Mounting plate incl. VESA 75/100 for mounting a mini PC, power strip etc.
• Quick and easy display mounting thanks to suspension rails with quick-release fastener
• Floor/wall mounting
