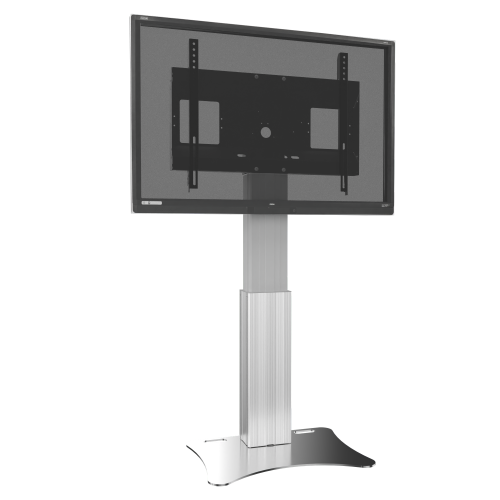

Electrically height-adjustable display stand for 55"-100" (interactive) flat-panel displays. Suitable for wall mounting.
The SCETAPL is suitable for holding displays with a screen diagonal of up to 100". The system includes a sturdy frame for holding the display with integrated cable management and two suspension rails with quick-release fasteners for quick and easy display mounting.
The SCETAPL display stand comes with a pylon column with a 50 cm stroke, including collision protection.
An 8 mm thick steel plate is attached under the pylon column. The system can be placed free-standing in the room or mounted on a lightweight wall. Recesses/handles in the base plate facilitate handling. The plate is plastic powder-coated in white aluminum.
The system comes disassembled in three packages and can be shipped by courier service.
| Item number | SCETAPLK | |
| Vesa horizontal | 300 mm - 800 mm | |
| Vesa vertical | 200 mm - 600 mm | |
| Vertical travel | 50 cm | |
| Center to floor distance | 988 mm - 1488 mm | 38.9" - 58.6" |
| Load capacity | 136 kg | 299.8 lbs |
| Width | 890 mm | 35" |
| Height | 1308 mm - 1808 mm | 51.5" - 71.2" |
| Depth | 530 mm | 20.9" |
| Warranty | 5 years limited warranty | |
| Frame color | RAL 9005 deep black | |
| Column color | Silver anodized | |
| Base color | RAL 9006 white aluminum | |
| Packages | Package dimensions WxHxD | Package weight |
| AF-SCETA-N | 900 x 160 x 450 mm / 35.4 x 6.3 x 17.7" | 14 kg / 30.9 lbs |
| PSTSCETA | 750 x 20 x 600 mm / 29.5 x 0.8 x 23.6" | 21,8 kg / 48.1 lbs |
| Total weight | 35,8 kg / 79 lbs | |
| Product sheet DE SCETAPLK |
 |
 |
| Product sheet EN SCETAPLK |
|
|
| User manual general SCETAPLK |
|
|
