Freestanding counterweight Pylon-system for monitors from 65-86"

manually height adjustable with 2 whiteboard wings
Item number: PYKL-IFPD-HW

Product description

This free-standing, manually height-adjustable counterweight system for monitors is compatible with all touchscreen displays available on the market, from 65" to 86" screens.

The display bracket slides between the two pylons so that the height of the display can be adjusted manually. It is hold in its place due to the counterweights on de back of the system.
This ensures that every user can work and present at the ergonomically best height.

The two whiteboard wings enable digital and analog working with this system. Both sides of the 2 whiteboard wings can be written onwith whiteboard markers, the are dry wipeable and magnetic.


Features

  • Please indicate the model of the displaywhen placing your order
  • free-standing, manually height-adjustable system
  • stable H-frame with adjustable feet
  • Pylon length 1900 mm
  • Height adjustment with counterweights, height adjustment path 800 mm stroke
  • 2 whiteboard wings, magnetic, to be written on with whiteboard markers and can be wiped dry
  • All connections on the display are freely accessible
Product image Freestanding counterweight Pylon-system for monitors from 65-86
Product image Freestanding counterweight Pylon-system for monitors from 65-86

Icon display mounts
Display mount
Icon platform stand
Free-standing
Icon manual height adjustable
Manual height adjustable
Icon single display
Single display
Icon maximum load
Max. load
211.6 lbs
Icon maximal VESA
Max. Vesa
800 x 600
Item numberPYKL-IFPD-HW
Vesa horizontal300 mm - 800 mm
Vesa vertical200 mm - 600 mm
Frame for all65" - 86"

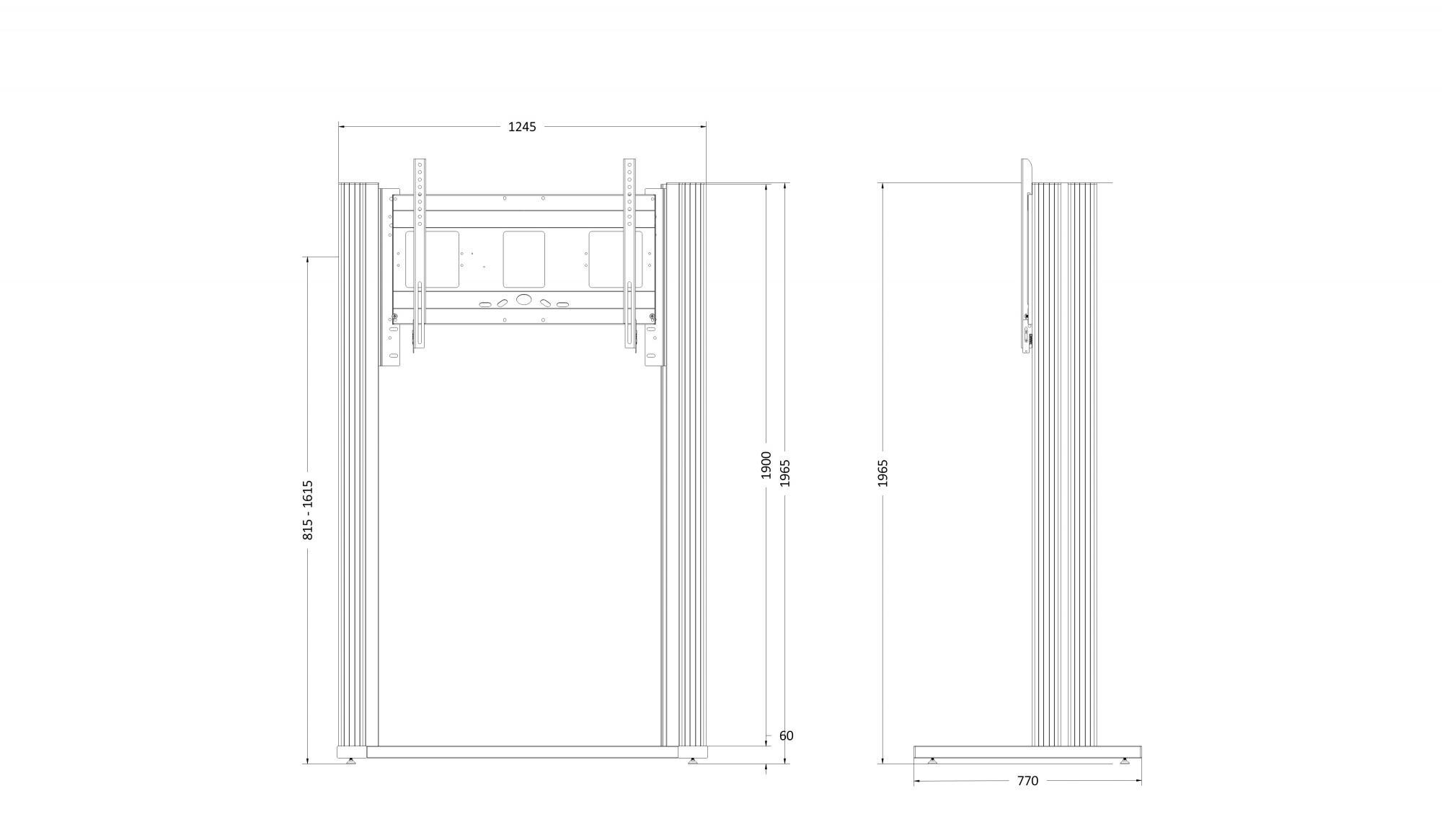

Center to floor distance 815 mm - 1615 mm32.1" - 63.6"
Load capacity96 kg 211.6 lbs
Width 1245 mm49"
Height 1965 mm77.4"
Depth 770 mm30.3"
Frame colorRAL 9005 deep black
Column colorSilver anodized
Base colorRAL 9005 deep black
Display mount for displays with max. VESA 800 x 600
Detail image Display mount for displays with max. VESA 800 x 600 PYKL-IFPD-HWThis frame accommodates monitors with max. VESA 800 x 600. The sturdy construction consists of 2 mm powder coated steel. Power strips can be mounted on the frame and, thanks to the cable management, no cables hang down on the system.
