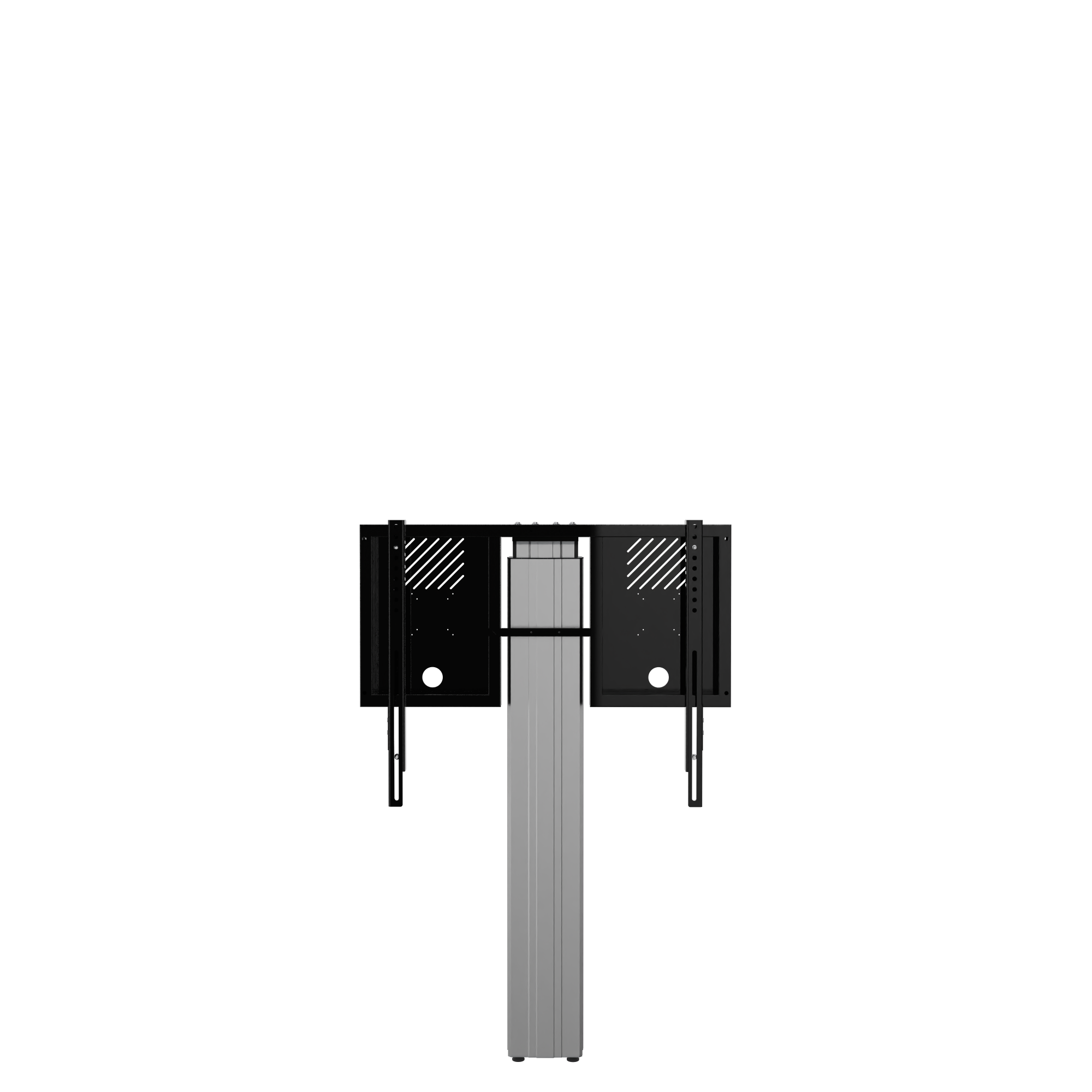

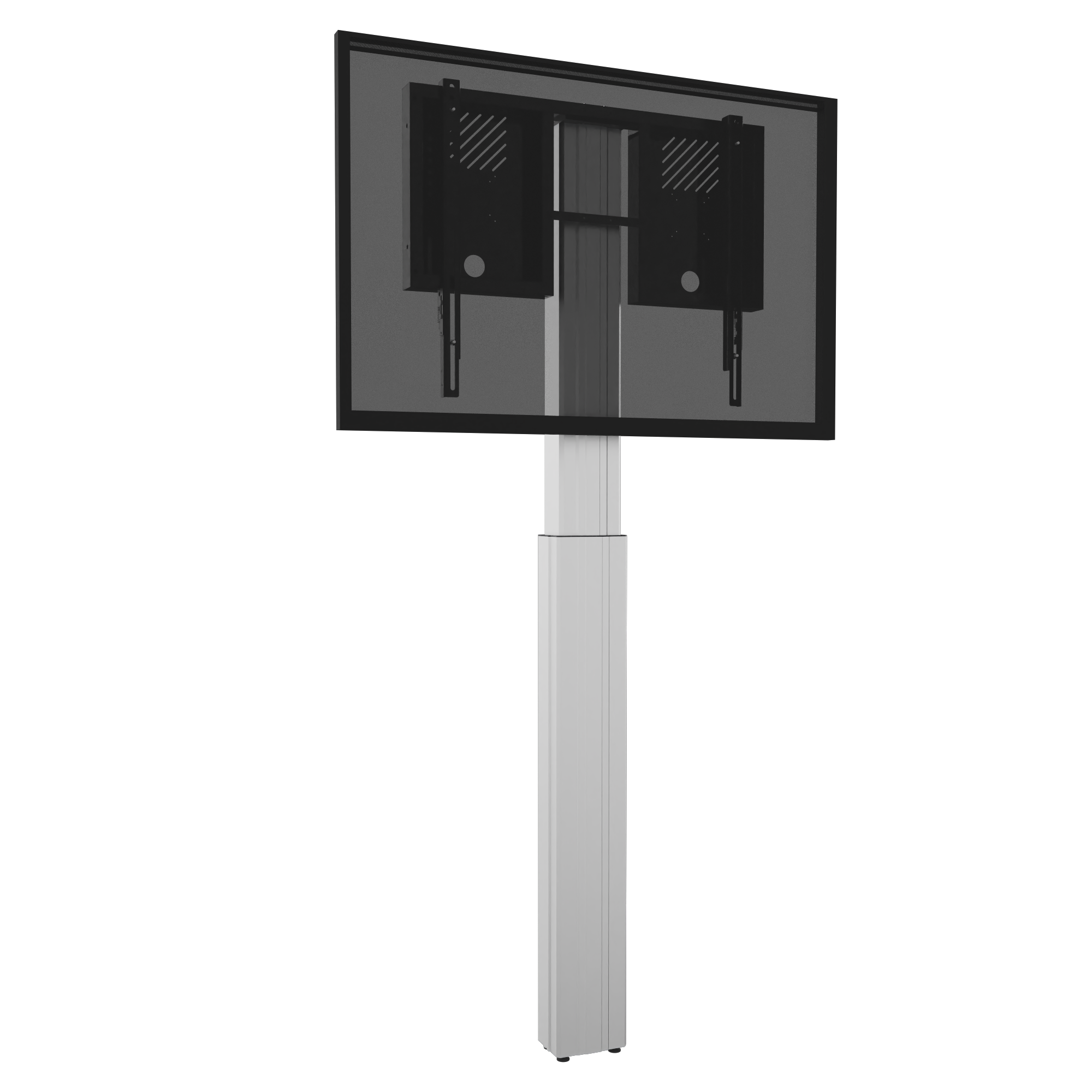

Motorized adjustable wall mount for 55”-86” (interactive) touch screen. The single-column, floor-to-wall design, guarantees maximum stability & safety.
The mount comes standard with a wired remote control, allowing the user to raise and lower the screen with a simple touch of the button.
The high-speed actuator has an unsurpassed speed of 1.85”/47mm per second.
Conen cares about classroom safety. The motorized mount features an anti-collision sensor that detects objects that are in the way during operation. If an obstruction is detected, the system stops and reverses the operational direction.
The RLI12090WK monitor mount also offers an extended 900mm/35.5” of smooth motorized height adjustment giving everyone, even those in early grades or in a wheelchair, to participate.
The integrated display mount allows for displays with maximum weight of 136kg/300 lbs. and a max. VESA 800x600 pattern.
Two “pull & release” locking brackets ensure quick and easy mounting of the monitor.
The unit comes disassembled and ships in two, courier-shippable, cartons.
| Item number | RLI12090WK | |
| Vesa horizontal | 300 mm - 800 mm | |
| Vesa vertical | 200 mm - 600 mm | |
| Frame for all | 55" - 86" | |
| Vertical travel | 90 cm | |
| Center to floor distance | 930 mm - 1830 mm | 36.6" - 72" |
| Load capacity | 136 kg | 299.8 lbs |

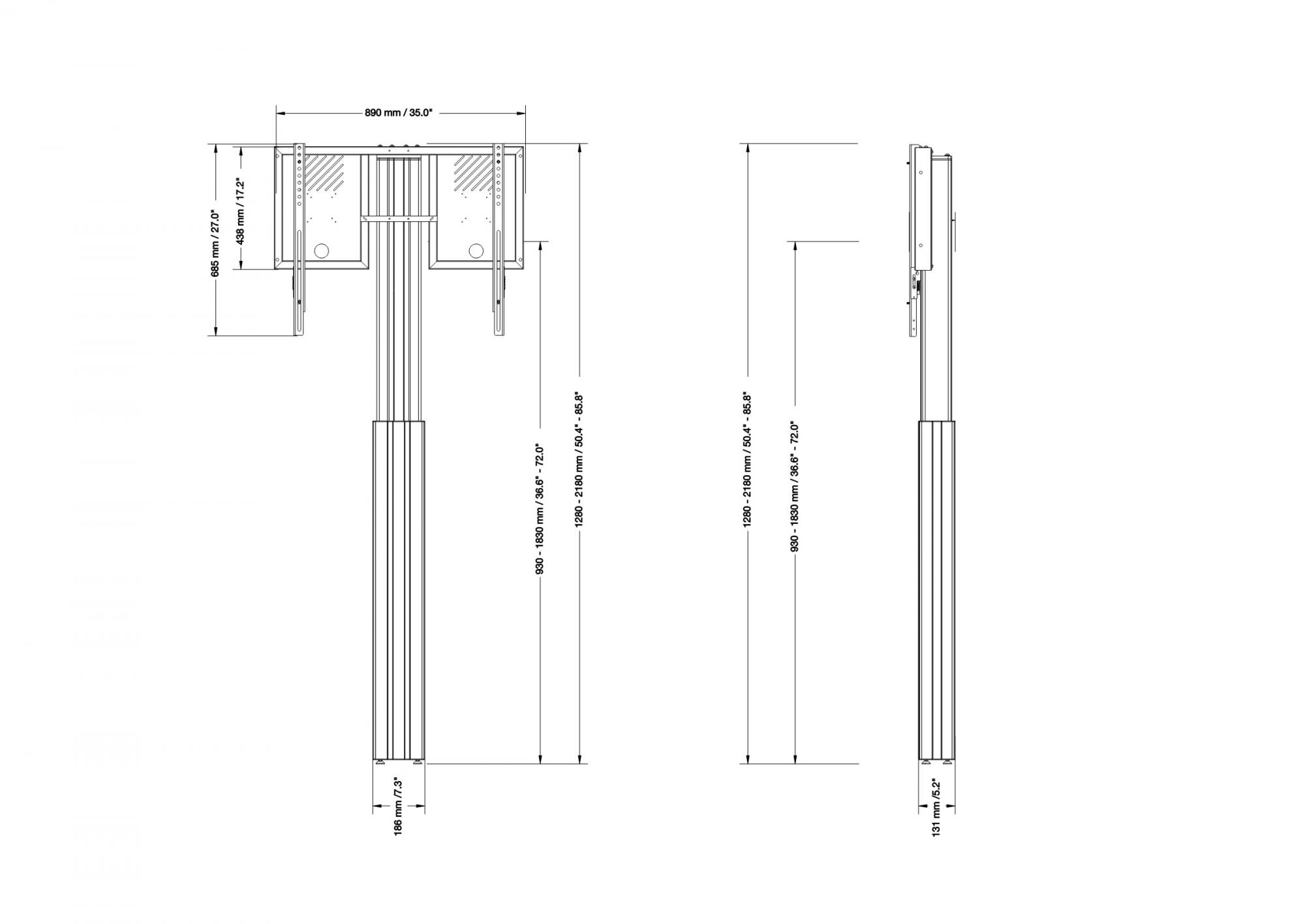

| Width | 890 mm | 35" |
| Height | 1280 mm - 2180 mm | 50.4" - 85.8" |
| Depth | 166 mm | 6.5" |
| Warranty | 5 years limited warranty | |
| Frame color | RAL 9005 deep black | |
| Column color | Silver anodized | |
| Packages | Package dimensions WxHxD | Package weight |
| AFSCETARLI | 895 x 65 x 485 mm / 35.2 x 2.6 x 19.1" | 14 kg / 30.9 lbs |
| CCEL12090WK | 1390 x 195 x 245 mm / 54.7 x 7.7 x 9.6" | 27,6 kg / 60.8 lbs |
| Total weight | 41,6 kg / 91.7 lbs | |
| Product sheet DE RLI12090WK |
 |
 |
| Product sheet EN RLI12090WK |
|
|
| User manual DE/EN |
|
|
